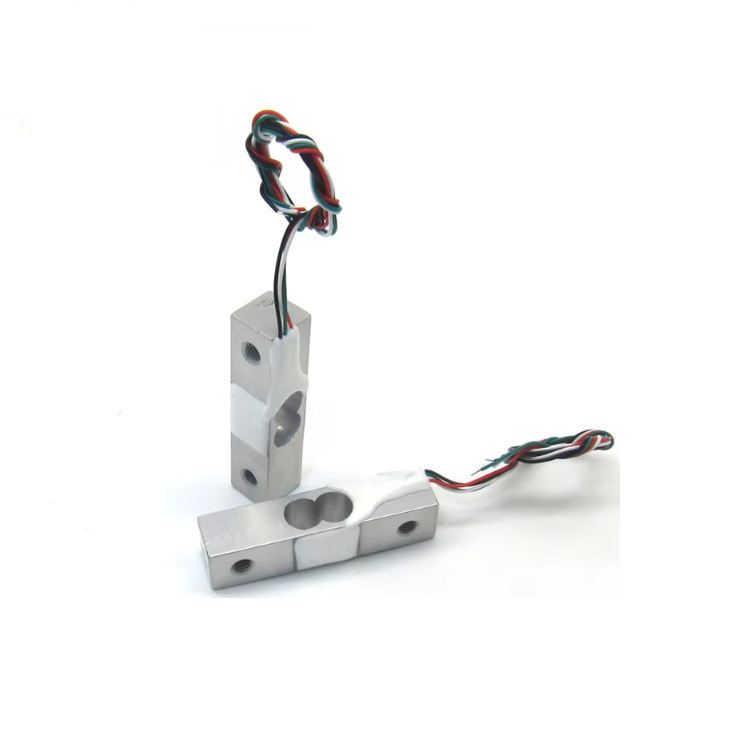

Single Point Load Cell Sensor 1-50KG Capacity Analog Output

Détails de produit:

Lieu d'origine:	Chine
Nom de marque:	RJ
Certification:	CE/ROSE
Numéro de modèle:	RJ

Les informations détaillées

Lieu d'origine:

Chine

Nom de marque:

Certification:

CE/ROSE

Numéro de modèle:

Sortie:

Capteur analogue

Capacité:

1kg-50kg

Câble:

0,8 x 220 mm

Impédance d'entrée:

1000 ± 50 Ω

Classe de précision:

00,05 pour cent

Erreur complète:

00,05 % F.S.

Mettre en évidence:

High Light

Mettre en évidence:

Single point load cell 1-50KG

Analog output load cell sensor

50KG capacity load cell

Informations sur le commerce

Quantité de commande min:

Prix:

$3-10

Détails d'emballage:

carton ou caisse en bois

Délai de livraison:

5-8 jours ouvrables

Conditions de paiement:

L/C, D/A, D/P, T/T, Western Union

Capacité d'approvisionnement:

2000PC/Month

Description de produit

Body Scale Miniature Weight Sensor Single Point Load Cell 2 Kg 5 Kg 10 Kg 15 Kg 20 Kg 50 Kg

Single Point Load Cell Sensor 1-50KG Capacity Analog Output 0

Parameters

Capacity	1kg-50kg
Rated Output	1.0±0.2mV/V
Comprehensive error	0.05 %F.S
Non-linearity	0.05%F.S
Hysteresis	0.05%F.S
Repeatability	0.05%F.S
Creep	0.05 [(3 min)% F.S.]
Zero output	-0.15~+0.05 m V/V
Temp. effect on zero	0.3 (%F.S/10℃)
Temp. effect on span	≤0.15 (%F.S/10℃)
Input impedance	1000±50 Ω
Output impedance	1000±50 Ω
Insulation resistance	≥2000 MΩ
Operating compensated range	-10~+40
Recommended excitation voltage	3-10 VDC
Safe overload	120%F.S
Ultimate Overload	150%F.S
Cable	Φ0.8 x 220mm
Connection	Excitation: Red+, Black- Signal: Green+, White-

Single Point Load Cell Sensor 1-50KG Capacity Analog Output 2

Inatallation

Single Point Load Cell Sensor 1-50KG Capacity Analog Output 3

Packing & Transport

Single Point Load Cell Sensor 1-50KG Capacity Analog Output 4
